24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

Shenzhen Hanhui Photoelectricity Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

Brand Name : hanhui

Model Number : HH-684-24×1-xx-PH5050

Certification : CE,RoHs

Place of Origin : Shenzhen,China

MOQ : 1pc

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 15000pcs/week

Delivery Time : 2-12 working days

Packaging Details : carton

Model No : HH-684-24×1-xx-PH5050

Material : Optical Grade PC

Transmittance : 92%

Size(mm) : 173×71.4

Waterproof : Yes/Gasket

The Number of Light Source : 24

Angle : 60°/90°/120°/T2M/T3M/T4M

Light Source : PH5050

Application : Street Lighting

Contact Now

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens


1. Advantage

(1) High transmittance

The light transmittance of our lens is 92%.

(2) High-quality PC material

We use high-quality PC materials(Teijin PC), and we can also specify the materials.

(3)Convenient installation

Screw installation is convenient and fast.

(4)Waterproof

Fitted with a silicone gasket, it is effectively waterproof.

(5)Multiple light distribution

Multiple light distributions to meet your light distribution needs.

(6)Multiple dimensions

A variety of sizes to meet your different size needs. (If you have special requirements, we can also make a special mold for you.)

(7)Uniform facula

With a lens, the LED light color is better, even in a centralized spot.


2. Specification

Mold No. HH-684-24×1-xx-PH5050
Material PC
Transmittance 92%
Size(mm) 173×71.4
Angle 60°/90°/120°/T2M/T3M/T4M
LEDs PH5050
LEDs number 24


3. Application

Can be used in street lighting.

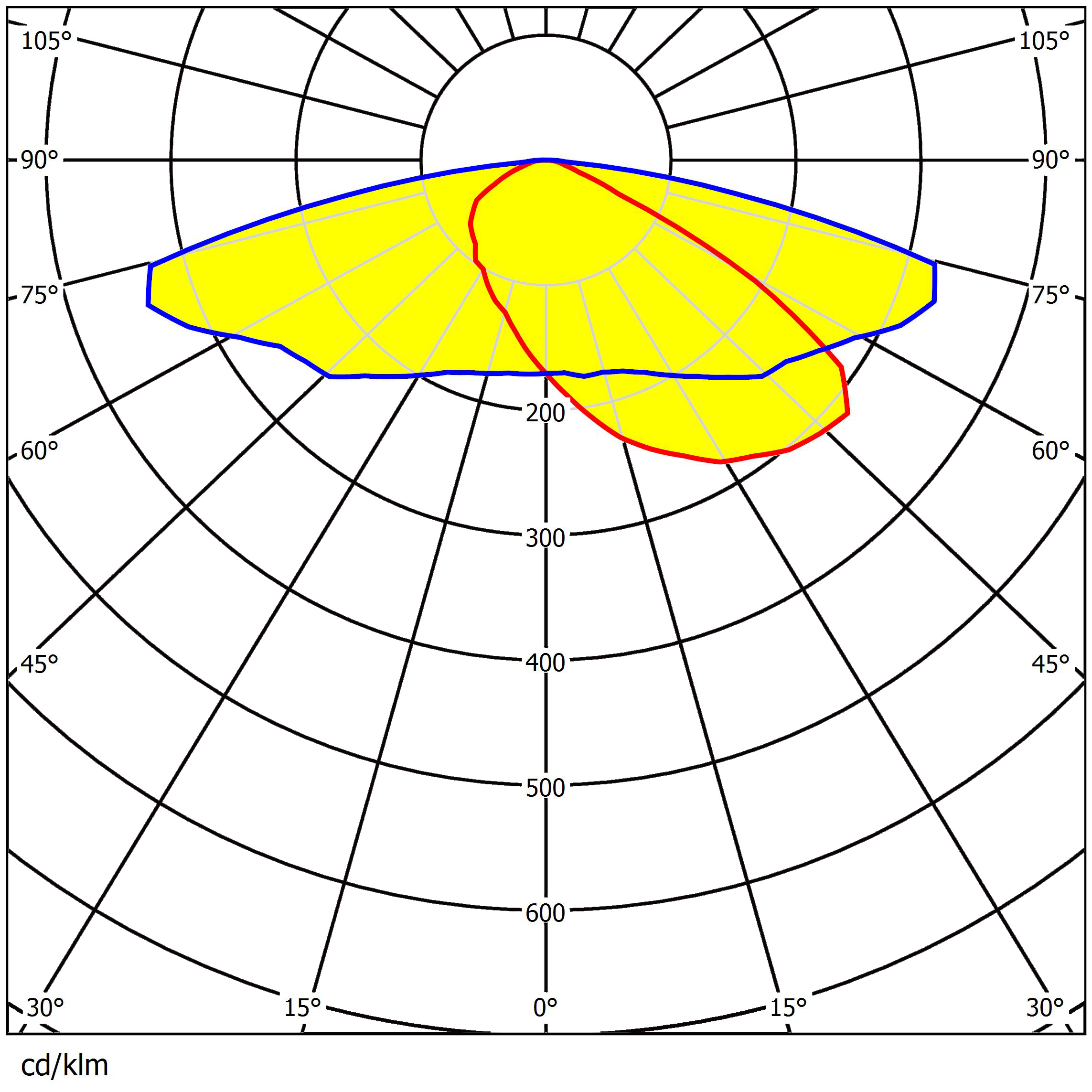

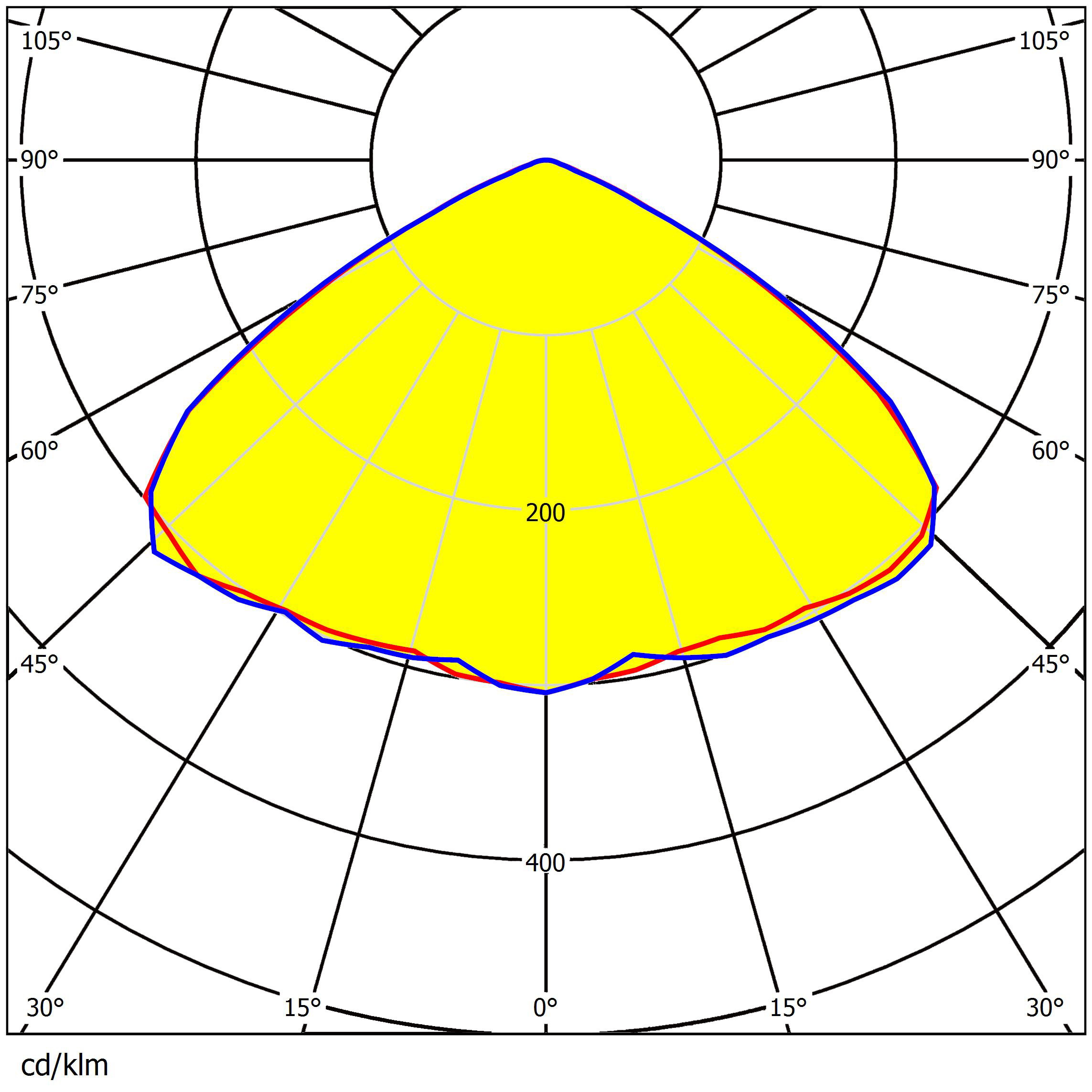

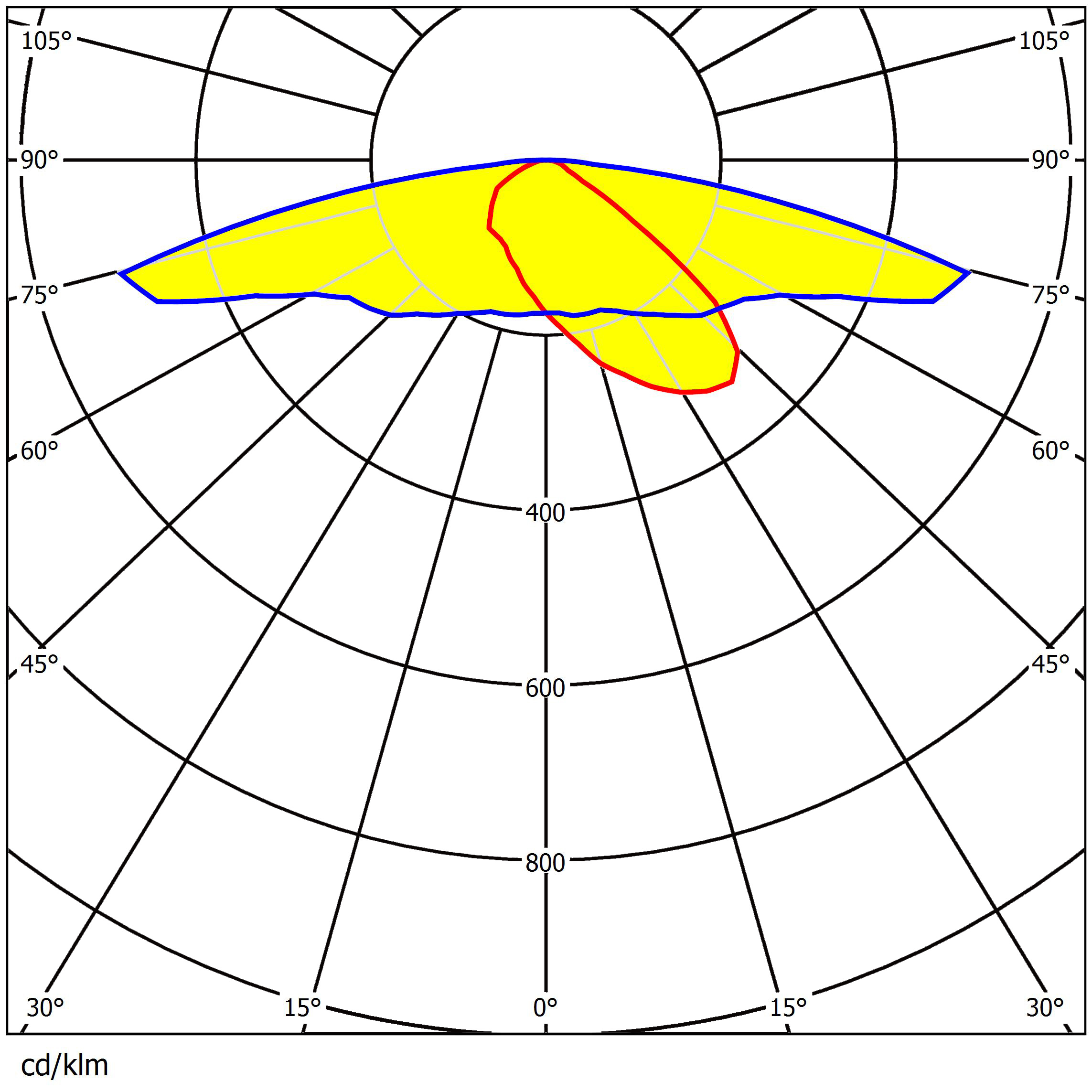

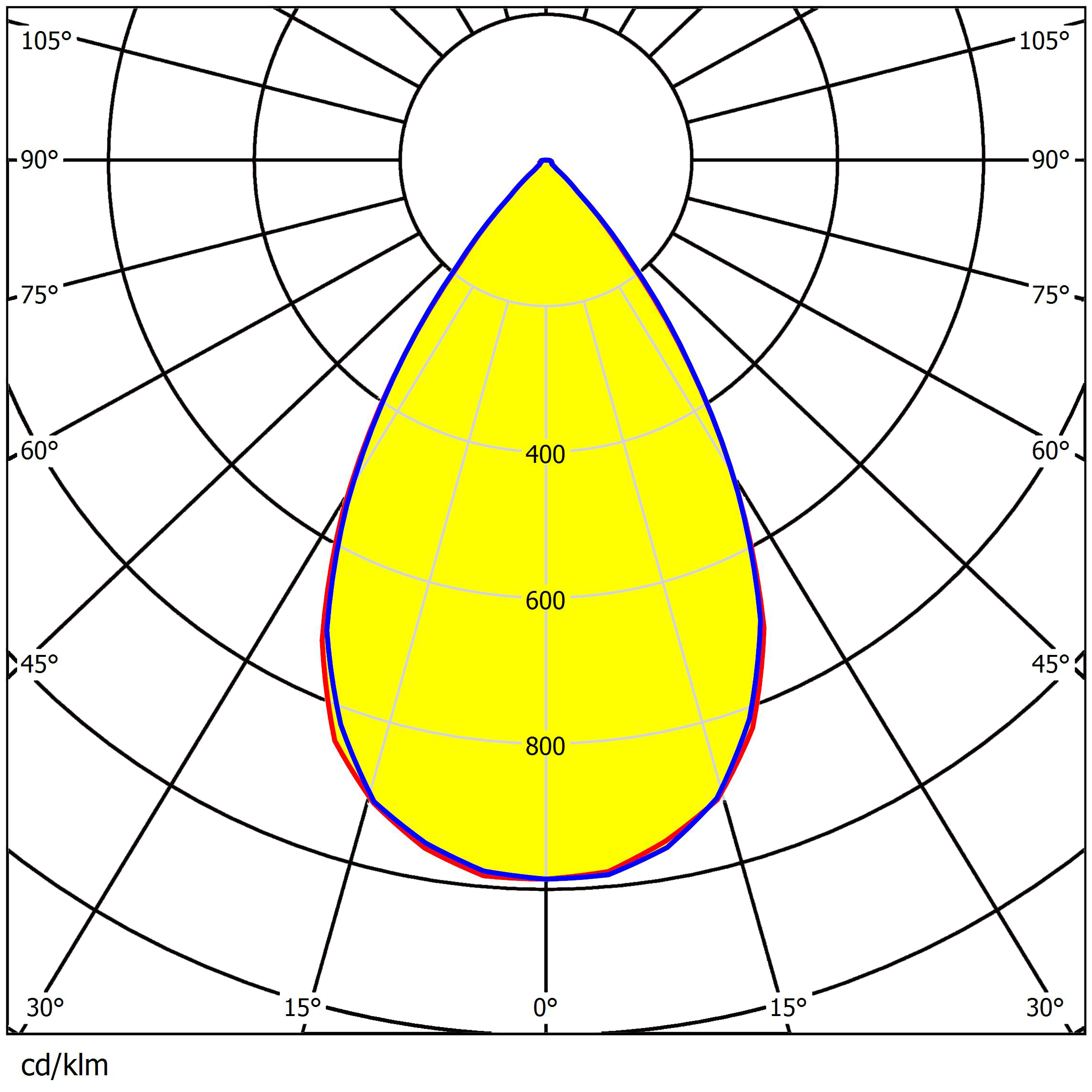

4. Light distribution

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens

24×5050 LED 173×71.4mm Lens 24-Facet Multiple Angle Lighting Durable PC Anti-Aging High-Output Street/Area Lens


5. Our services

(1) Good quality control
(2) Highly competitive prices
(3) Latest product
(4) Best professional team
(5) Smooth communication
(6) Effective OEM & ODM service


6. FAQ


Q1. What’s your MOQ? Can I order a small order QTY for the first time?

A: For new customers, a small order QTY is accepted for the first time. The larger the quantity you place, the better price we can offer.

Q2. What about the lead time?
A: It depends on the quantity. Generally, it takes around 2-12 days after payment for us to finish the order. (Except customized products)

Q3. Which payment term?
A: Usually, we prefer T/T, PayPal, Western Union, and MoneyGram.

Q4. Can you do ODM and OEM products?
A: Yes, the ODM and OEM orders are accepted.

Q5. How to process mold product orders?
A: Firstly, let us know your requirements or application.
Secondly,
our designers will come up with designs.
Thirdly, the Customer
confirms the design and pays the deposit.
Fourthly, after the mold is completed, the customer confirms the sample and pays the balancer.

Q6. How to guarantee the quality of your products?
A: All our products are 100% QC passed before delivery, and if any problems arise during the period, we will assist in resolving them.

Q7. Reliable After-sales Service:
A: Customers could be guided by us to shoot any troubles; We will supply enough spare parts for each project.
A 24-hour time solution of calling or emailing is always available.

Q8. How could I get a sample?
A: We need to charge shipping fees, and we can provide free samples for small quantities.
